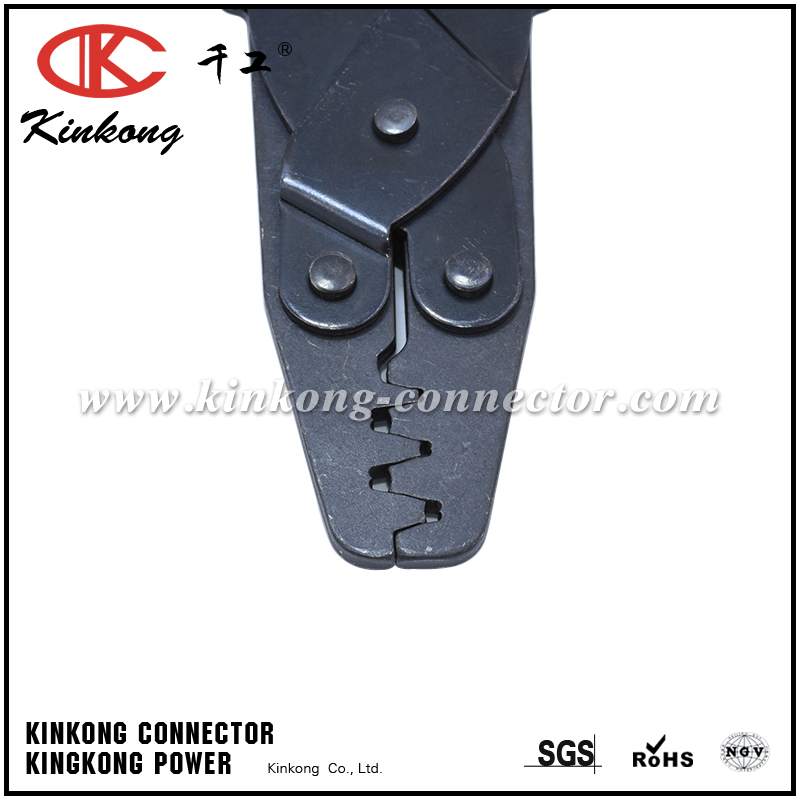

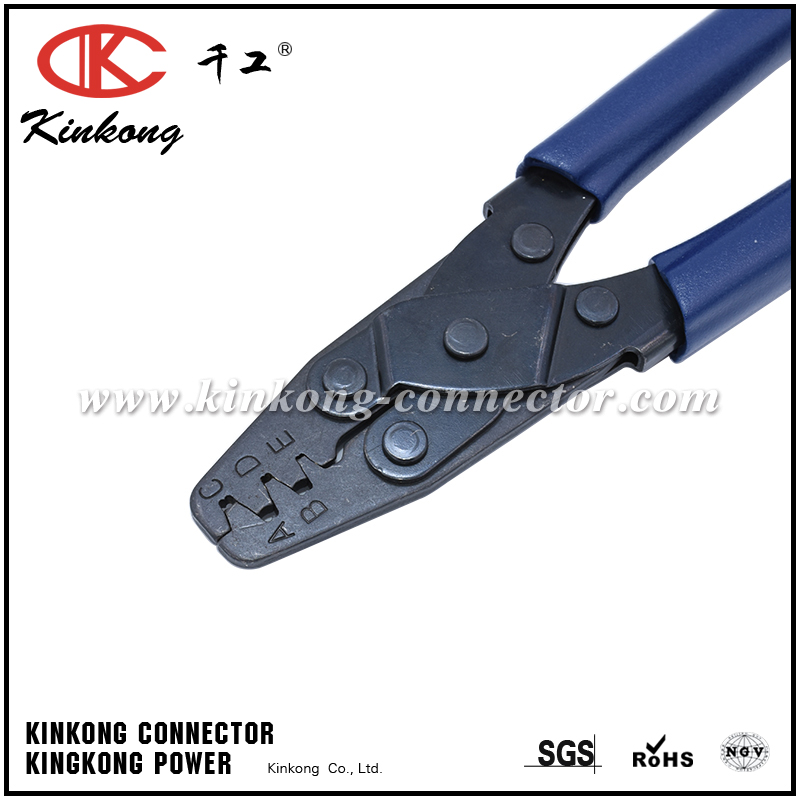

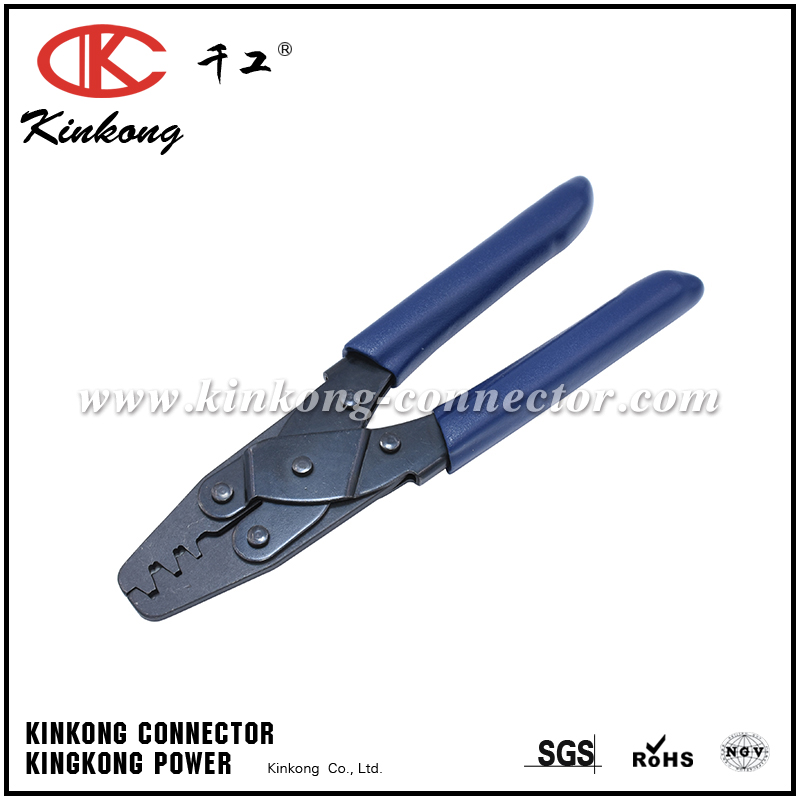

An economical crimper with 5 cavities to crimp open barrel terminals from 24-14 AWG. Parallel jaw action helps prevent the rolling tendency of ratcheting type crimpers, but require greater hand force to operate, so these are recommended only for occasional use. 8.4" length.

Comparable to Delphi 12085271 and SPX Kent-Moore J-38125-7 crimpers

Product name	Hand Tools
Specification	CKK-1
Material	High Carbon Steel
Available wire gauge	1.25/2.0/2.45/3.96/4.2/6.3mm² AWG
Color	Black &Blue
Function	Crimping Terminals
Certification	TUV,T/S16949,ISO14001 system and RoHS.
MOQ	Small order can be accepted.
Payment term	30% deposit in advance,70% before shipment,100% T/T in advance
Delivery Time	Enough stock and strong production capacity ensure timely delivery.
Packaging	1PCS per bag with label,export standard carton.
Design ability	OEM&ODM is welcome. Customized drawing with Decal/ Frosted/ Print are available as request

For use with a wide variety of open barrel crimp terminals including:
- MTW-series, Hitachi
- MT, HM, HW-series, Sumitomo
- HX, DL, SL, TL, TS-series, Sumitomo
- RFW-series, Furukawa
- EPC15-series, EPC
- HE050-series, Sumitomo
- PAskt
- W025-series, Sumitomo
- LB-series
- HX040-series, Sumitomo
- HX040.JC-series, Sumitomo
- N-series
- SSD-series, Yazaki
- SSC-series, Tyco/AMP Sealed Sensor Connector
- SS15-series, Tyco/AMP Superseal 1.5
- ES3-series, Tyco/AMP Econoseal III
- JPT-series, Tyco/AMP Junior Power Timer
- 090II-series, Yazaki
- GT150.35- and GT150.45-series, GT-150 Sealed, Delphi
- MP150.2-series, Metri-Pack 150.2 Pull to seat, Delphi
- MP150P-series, Metri-Pack 150 Pull to seat, Delphi

NOT compatible with:
- 250-series
- BC35, BC40-series bullet connectors
- QLW-series, Furukawa
- ESJ-series, Tyco/AMP Econoseal MkII J-series
- MP150-series, Metri-Pack 150 Rear Insert type, Delphi
- MP150U-series, Metri-Pack 150 Unsealed, Delphi
- MX23A-series, JAE
- MX47-series, JAE
- JWPF-series, JST
- SS10-series, Tyco/AMP Superseal 1.0
- WP-series, Weather-Pack, Delphi
