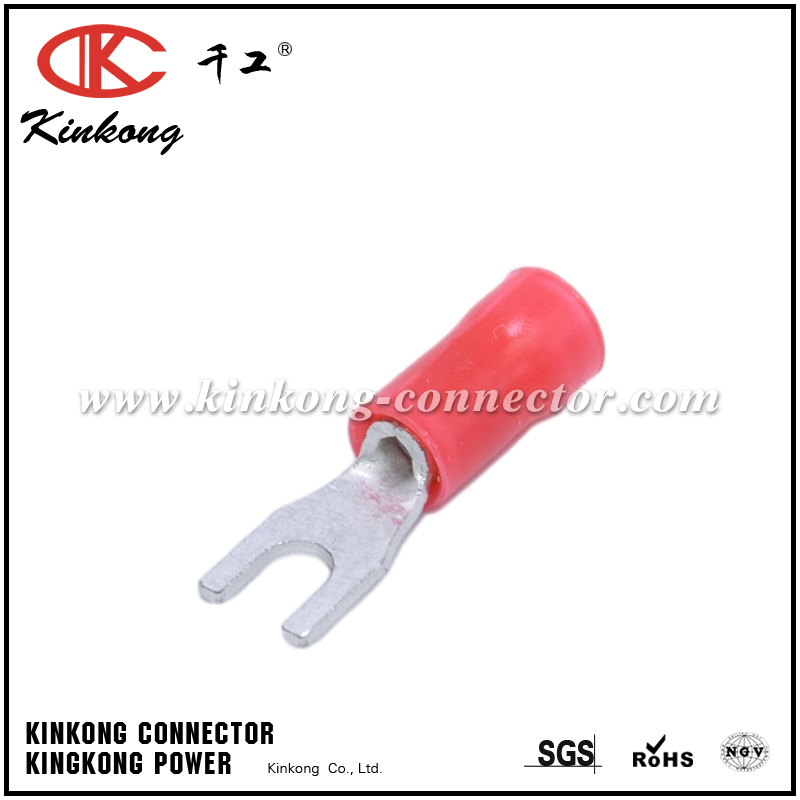

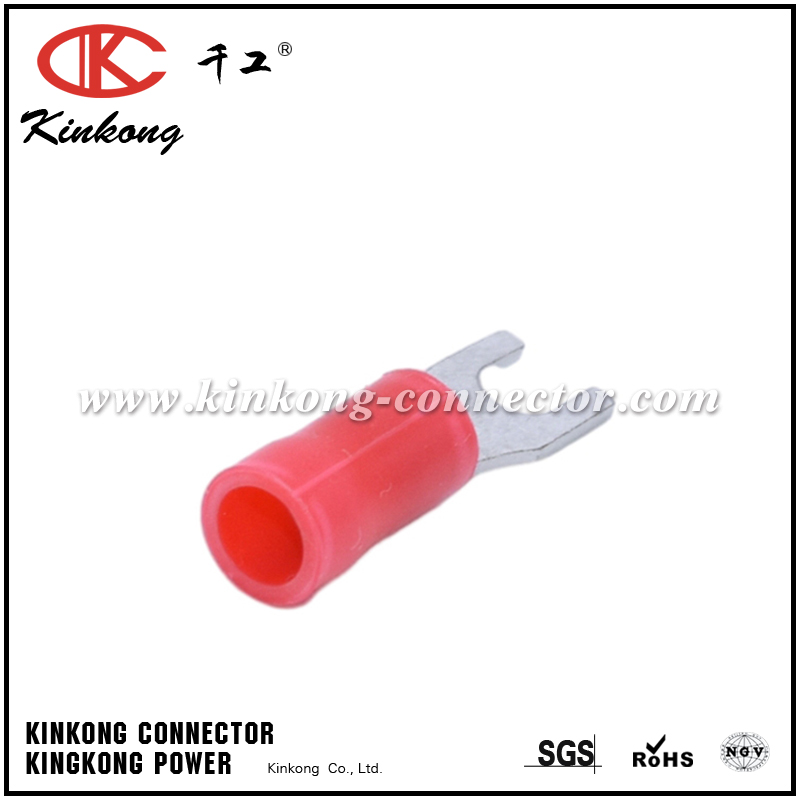

Spade Tongue Terminal, 22-16AWG 165004

Spade Tongue Terminal, 22-16AWG 9990000338 165004-Original

Products Details

Product name:

Spade Tongue Terminal, 22-16AWG 9990000338 165004-Original

Product Catalog:

Accessories

OnLine Service:

【Prev Products】

【Next Products】

Product Details	Product Inquiry

Product Type Features

Stud Size : 4
Sealable : No
Wire Insulation Support Retention Type : Insulation Support

Electrical Characteristics

Voltage Rating (V): 600

Body Features

Product Weight (g): .155

Contact Features

Spade Terminal Type : Spade Tongue Terminal
Barrel Type : Closed
Terminal Orientation : Straight
Terminal Plating Material : Tin

Mechanical Attachment

Wire Insulation Support : Without

Dimensions

Wire Size (AWG): 22 – 16
Wire Size (mm²): .25 – 1.6
Wire Size (CMA): 509 – 3260
Stud Diameter : 3.02 mm [ .119 in ]
Tongue Thickness : .79 mm [ .031 in ]
Product Length : 19.91 mm [ .784 in ]
Compatible Insulation Diameter (Max) : 4.06 mm [ .16 in ]
Compatible Insulation Diameter Range : 3.68 – 4.06 mm [ .145 – .16 in ]

Usage Conditions

Insulation Option : Partially Insulated
Operating Temperature Range : 105 °C [ 221 °F ]

Operation/Application

Compatible With Wire Base Material : Copper
Compatible With Wire Plating Material : Tin

Industry Standards

Government Qualified Terminal : No
