Plug, Female, with Silicone O-ring Seal and End Cap with Individual Rear Wire Seal, 8 Contacts, Size 2.5mm, 14-12AWG, 23A/375V, Shell Size 18

Products

You are here: Home > Products > Ecomate Connectors

Products Details

Product name:

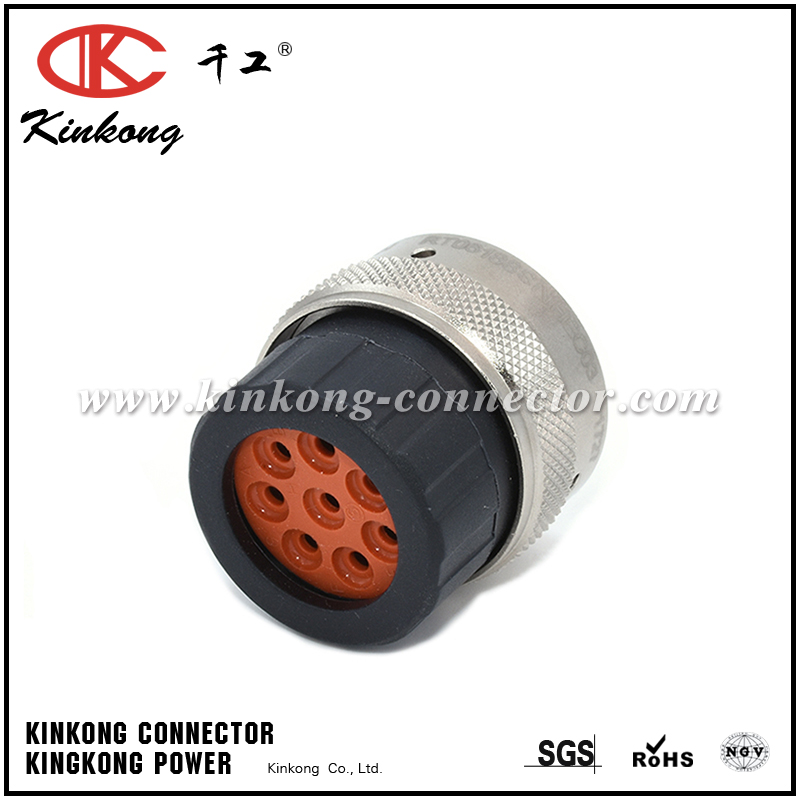

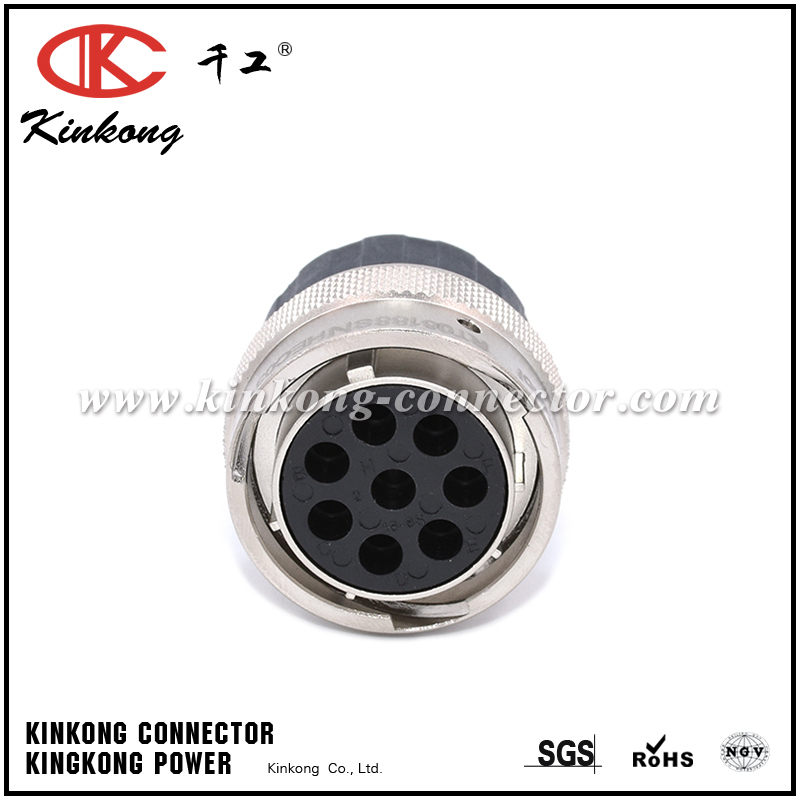

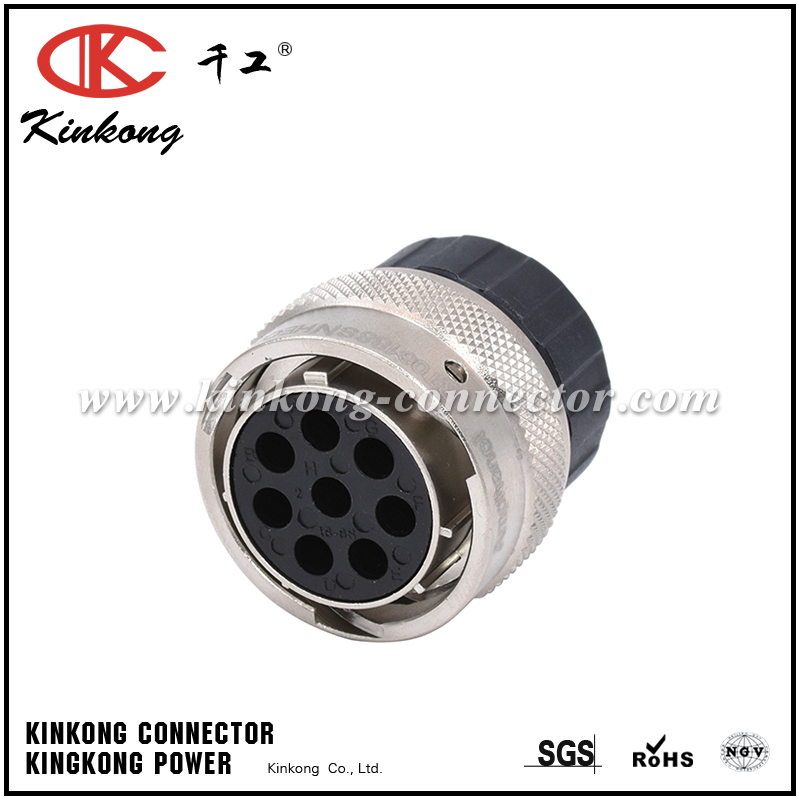

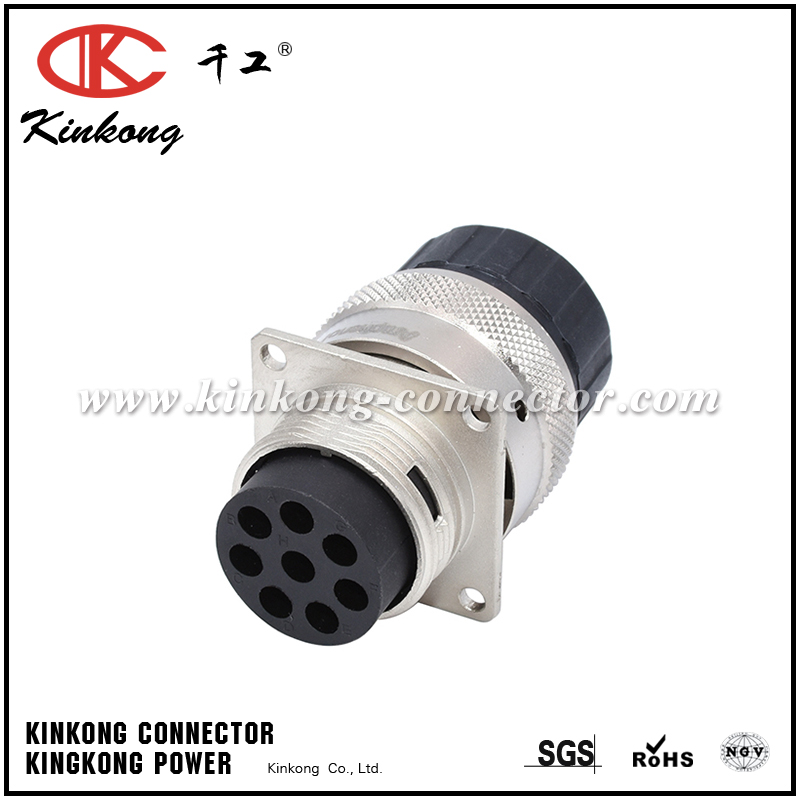

RT06188SNHEC03 PLUG, FEMALE

Product Catalog:

Ecomate Connectors

OnLine Service:

【Prev Products】

【Next Products】

Product Details	Product Inquiry

SPECIFICATIONS:

Male/Female:Female
Shell Size:18
Number of Contacts:8
Contact Pin/Socket:Socket
Contact Size:2.5 mm
Contact Type:O-Ring Seal
Amperage:23
Voltage:375
IP Rating:IP67
Insulation Diameter (OD) Min-Max:Ø3.3mm - Ø4.3mm
Salt Spray:48 H
AWG:14-12
Mating Parts:RT00188PNH*, RT07188PNH* Receptacle
