Product name

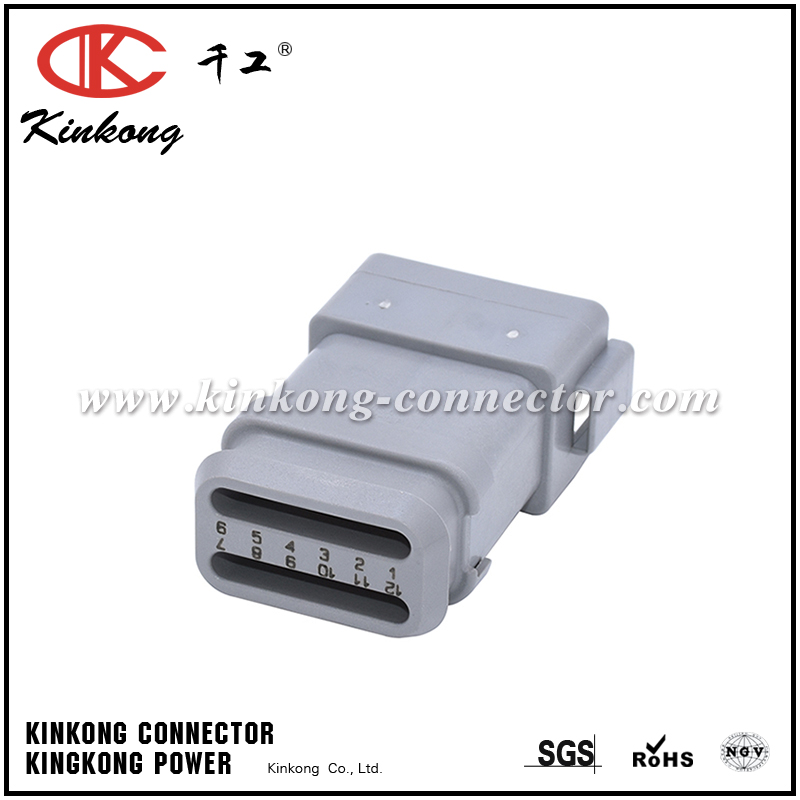

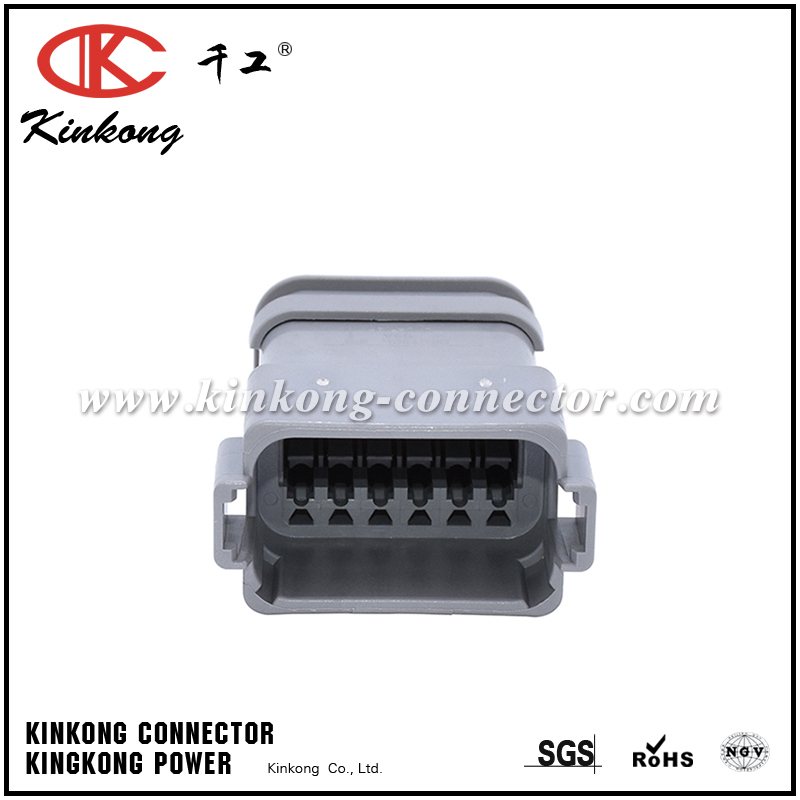

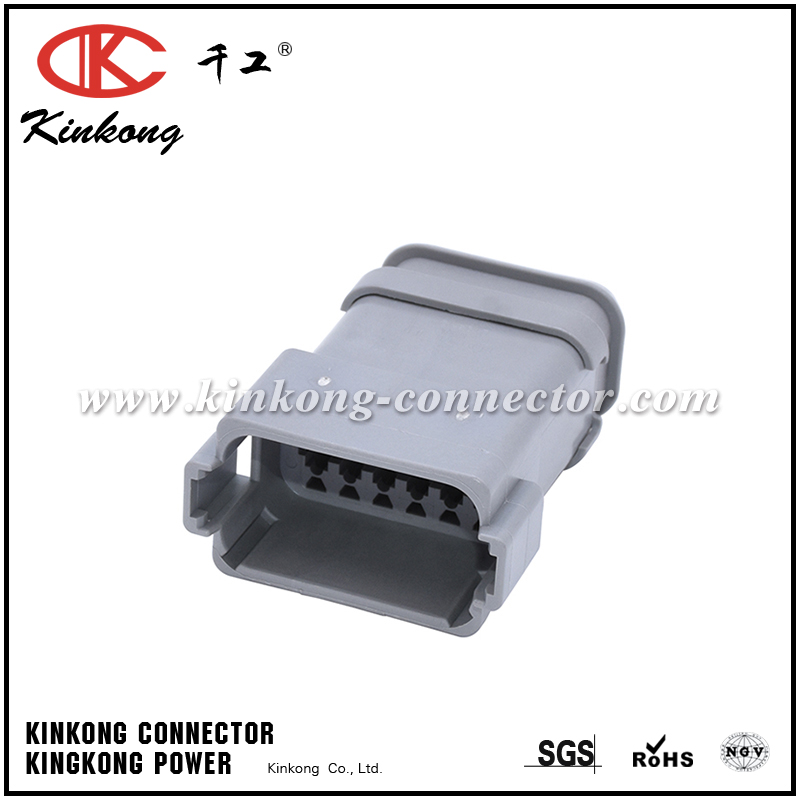

Auto Connector

Specification

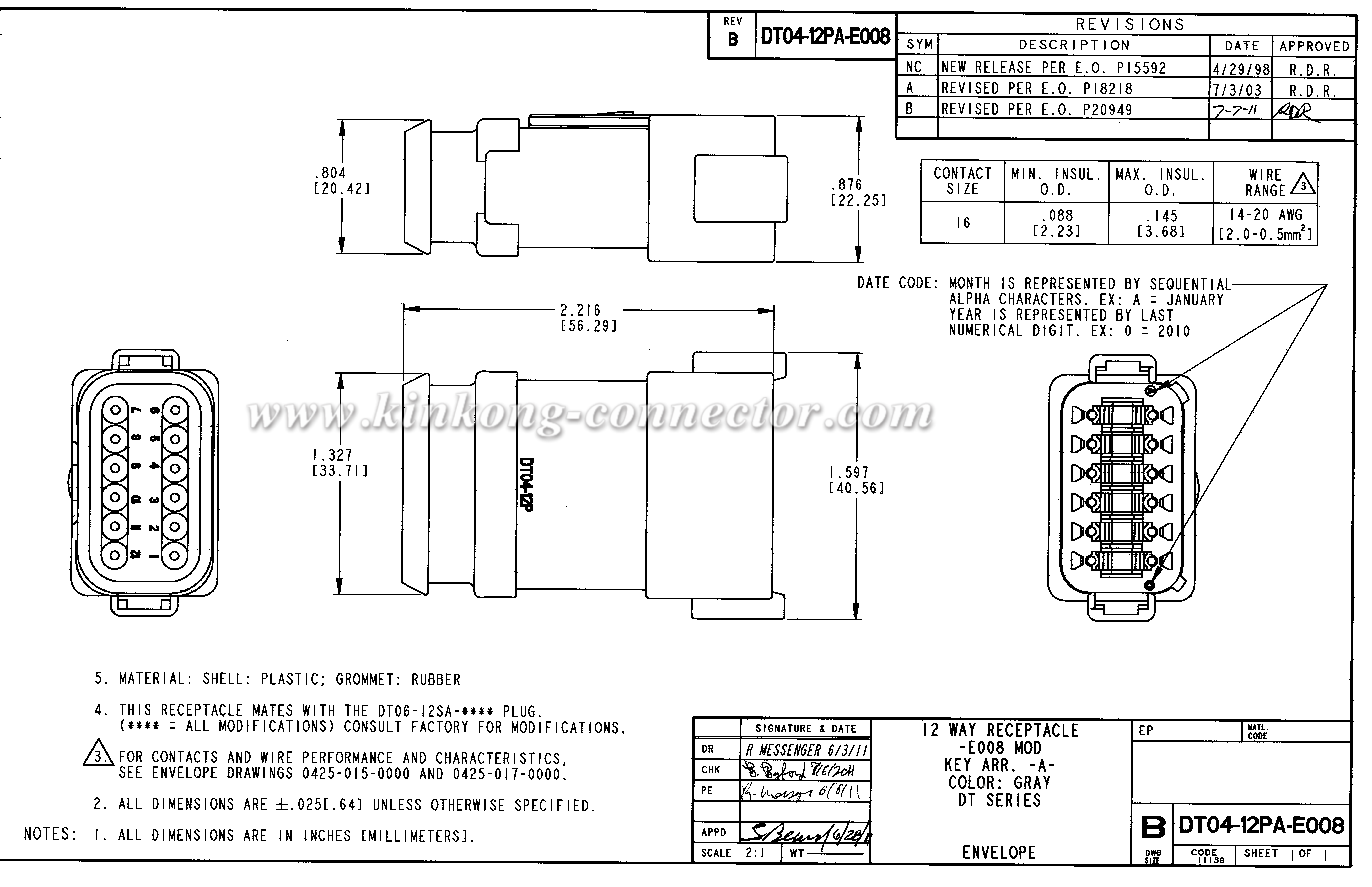

DT04-12PA-E008

Original number

DT04-12PA-E008 AT04-12PA-SRGRY

Material

Housing:PBT+G,PA66+GF;Terminal:Copper Alloy, Brass, Phosphor Bronze.

Male or Female

Male

Number of Positions

12 Pin

Sealed or Unsealed

Sealed

Color

Gray

Operating Temperature range

-40℃~120℃

Function

Automotive Electrical Wiring Harness

Certification

TUV,T S16949,ISO14001 system and RoHS.

MOQ

Small order can be accepted.

Payment term

30% deposit in advance,70% before shipment,100% TT in advance

Delivery Time

Enough stock and strong production capacity ensure timely delivery.

Packaging

100,200,300,500,1000PCS per bag with label,export standard carton.

Design ability

We can supply sample, OEM&ODM is welcome. Customized drawing with Decal, Frosted, Print are available as request
