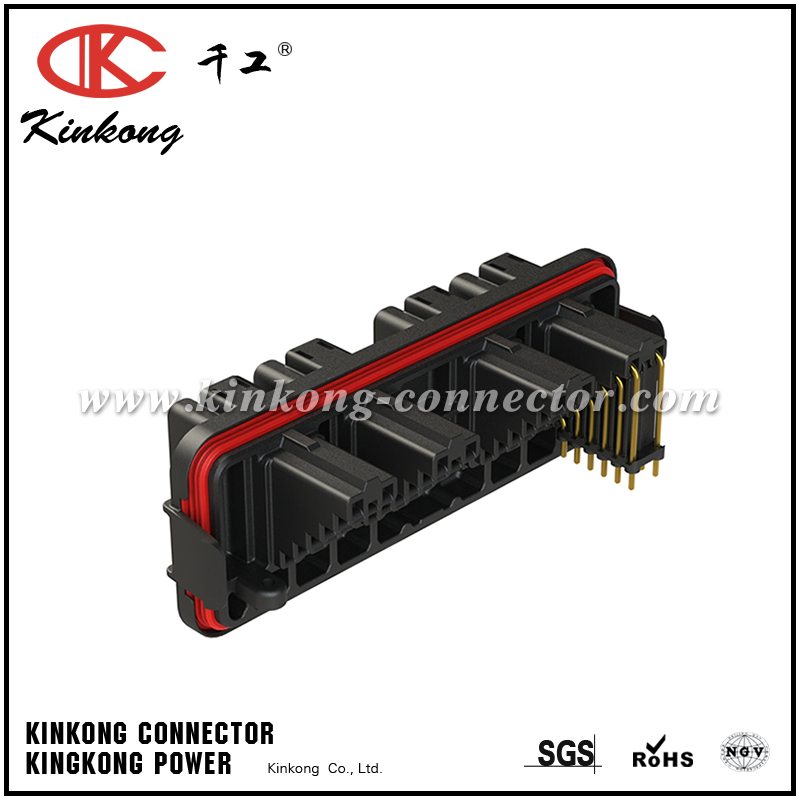

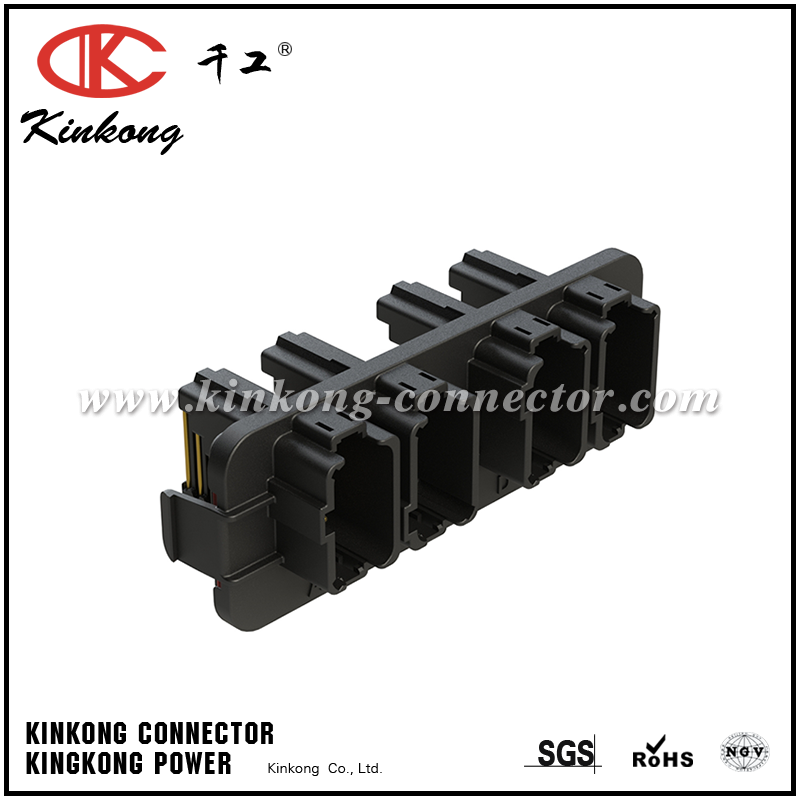

AIPX RECEPTACLE AT HEADER, 4 X 12 POSITIONS, SIZE 16 CONTACTS, GOLD PLATING AT13-12PA-GR02
Products Details
Product name:
AT13-12PA-GR02 AIPX RECEPTACLE AT HEADER, 4 X 12 POSITIONS, SIZE 16 CONTACTS, GOLD PLATING
Product Catalog:
Armor IPX
OnLine Service:
Product Details Product Inquiry
  • No. of Positions:48
  • AWG:14-20
  • Amperage:13
  • IP Rating:IP67 (in mated condition)
  • Contact Size:16
  • Contact type (Pin/Socket):Pin
  • Contact Material:Copper Alloy
  • Plating:Gold
  • Contacts Included:Yes
  • Housing Material:Thermoplastic
  • Color:Black
  • Operating Temperature:-55°C TO +125°C
  • Dielectric Value:Dielectric withstanding voltage less than 2 milliamps current leakage @ 1500 volts AC
  • 1004 megohms at 25°C
  • Mating Cycle Durability:> 100
  • Mating Part(s):AT06-12SX-*(X = A,B,C,D KEYS ; * = ALL MODIFICATIONS),AIPXE-5X650A-xxxx AND AIPXE-5X650B-xxxx ENCLOSURE
