You are here: Home > Products > AT Series

Products Details
Product name:

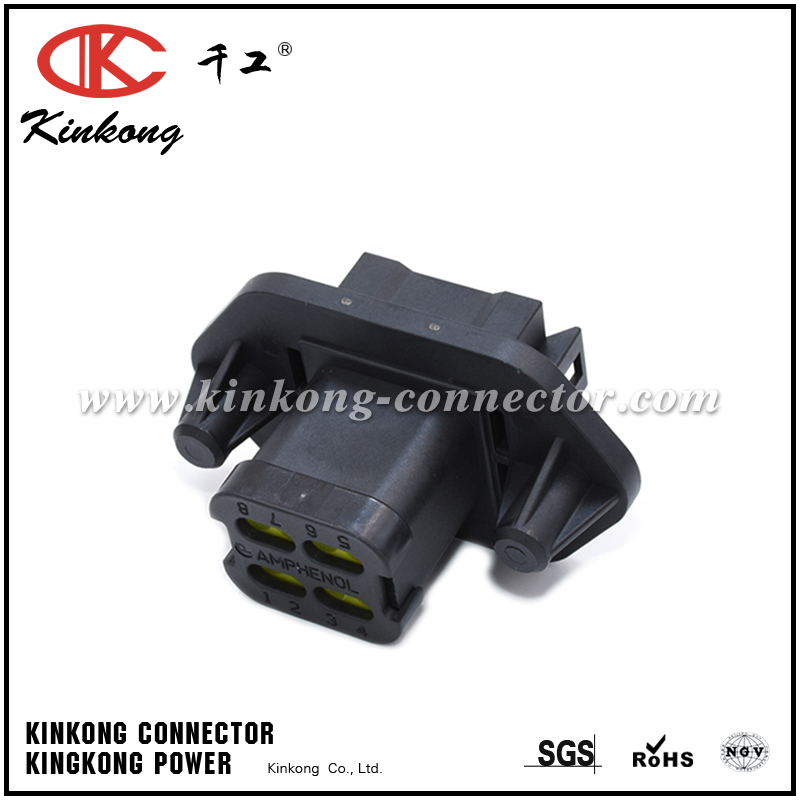

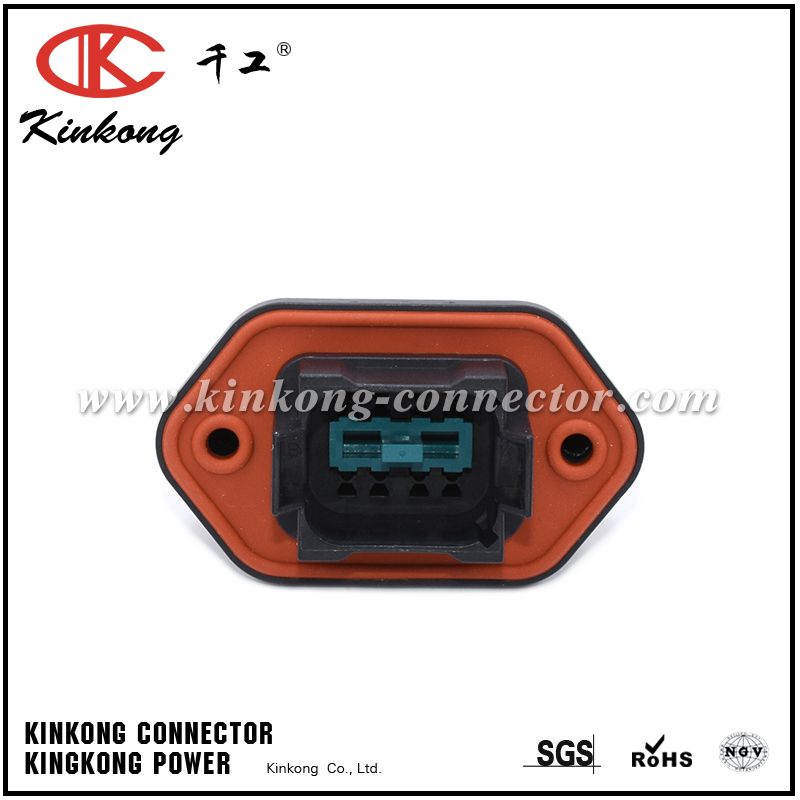

AT04-08PB-PM07G 8 POSITION PANEL MOUNT RECEPTACLE WITH ENDCAP, PIN, WITH GASKET. KEY POSITION B
Product Catalog:
AT Series
OnLine Service:
 Print this Page
 Bookmark this
 E-mail Us
 PDF Download
【Prev Products】
【Next Products】
Product Details Product Inquiry

SPECIFICATIONS:






  • No. of Positions:8-Way B Position Key
  • Contact Size:16
  • AWG:14-20
  • AMP:13
  • Contact type (Pin/Socket):Pin
  • Color:Black
  • Seal Diameter:1.35 mm ( .053 in - 3.05 mm (.120 in)
  • IP Rating:IP67
  • Wire Range:14-20 AWG
  • Operating Temperature:-55°C to + 125°
  • Dielectric Value:Dielectric withstanding voltage less than 2 milliamps current leakage @ 1500 volts AC
  • Insulation Resistance:1000 Megaohm min @ 25°C
  • Mating Cycle Durability:>100
  • Housing Material:Thermoplastic
  • Seal Material:Silicone Rubber
  • Mating Part:AT06-08SB* Plug
  • Wedge Part#:AW8P
