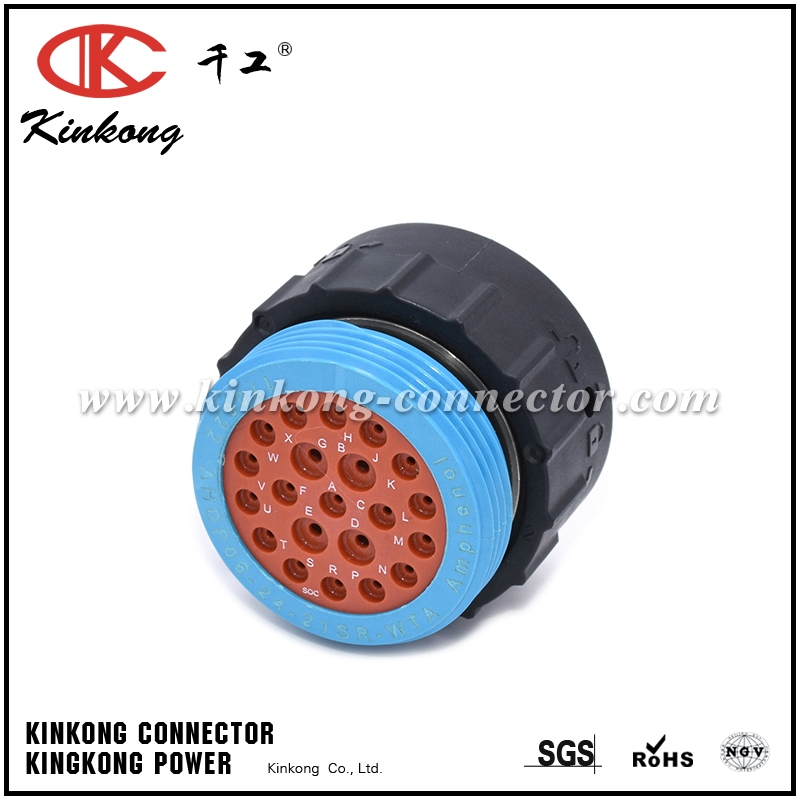

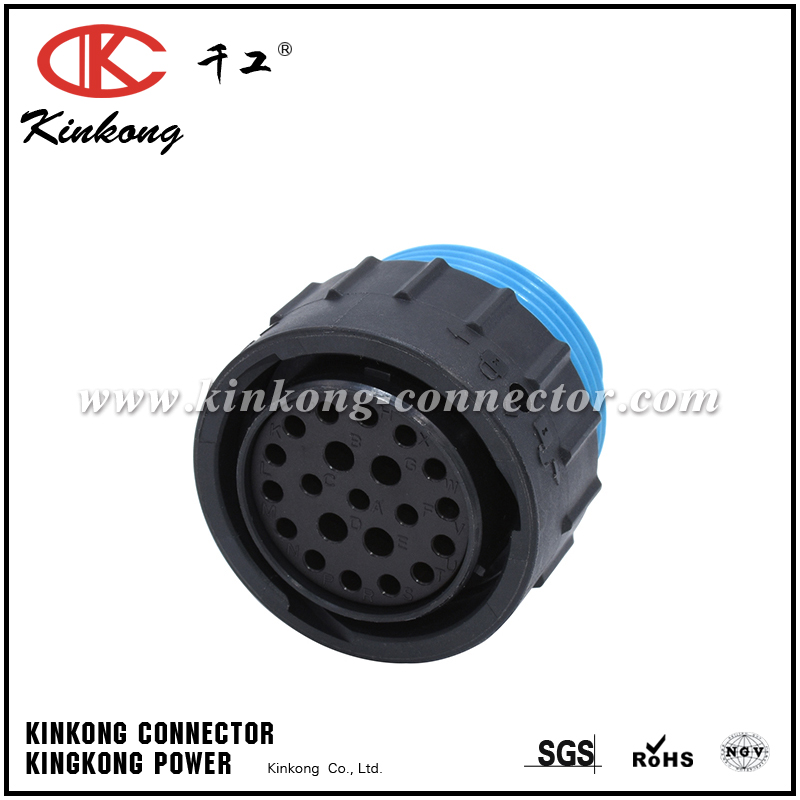

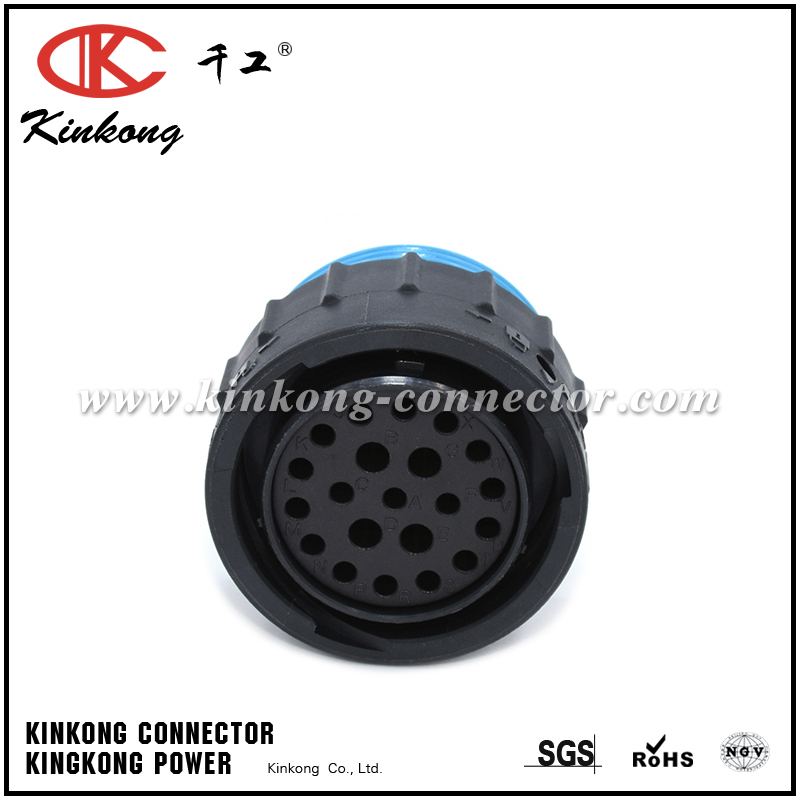

AHDP06-24-21SR-WTA SIZE 24 PLUG WITH 21 POSITIONS, SOCKET, STANDARD ARRANGEMENT, REDUCED SEAL, WIDE THREAD ADAPTER

Products

You are here: Home > Products > DuraMate Series

AHDP06-24-21SR-WTA SIZE 24 PLUG WITH 21 POSITIONS, SOCKET, STANDARD ARRANGEMENT, REDUCED SEAL, WIDE THREAD ADAPTER

Products Details

Product name:

AHDP06-24-21SR-WTA SIZE 24 PLUG WITH 21 POSITIONS, SOCKET, STANDARD ARRANGEMENT, REDUCED SEAL, WIDE THREAD ADAPTER

Product Catalog:

DuraMate Series

OnLine Service:

【Prev Products】

【Next Products】

Product Details	Product Inquiry

SPECIFICATIONS:

No. of positions:21

Contact type (Pin/Socket):Socket
Contact Size:12,16
AMP:13
AWG:10-14, 14-20
Gender:Standard
Housing Material:Thermoplastic
IP Rating:IP69K
Mating Cycle Durability:>100
Operating Temperature:-55°C to + 125°
Rear Seal Type:REDUCED SEAL
Color:Black
Dielectric Value:Dielectric withstanding voltage less than 2 milliamps current leakage @ 5000 volts AC
Insulation Resistance:1000 Megaohm min @ 25°C
Seal Material:Silicone Rubber
Seal Color:Blue
Mating Parts:AHDP04-24-21PN-WTA,AHDP04-24-19PR-WTA
Cross Reference:HDP24-24-21SE

If you have any enquiry about quotation or cooperation, please feel free to email us at sales@kinkong-connector.com or use the following enquiry form. Our sales representative will contact you within 24 hours. Thank you for your interest in our products.
