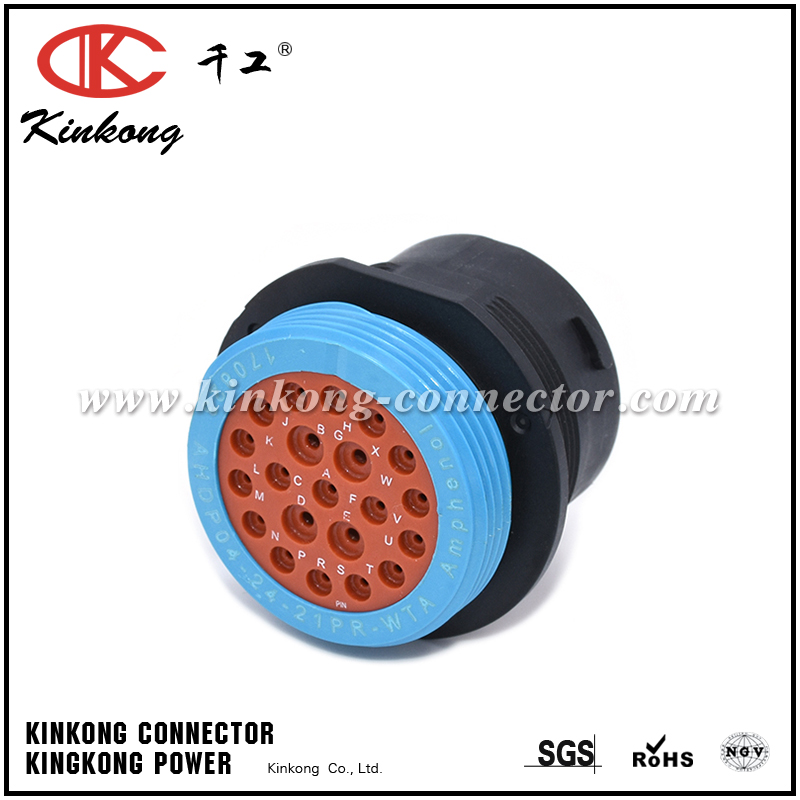

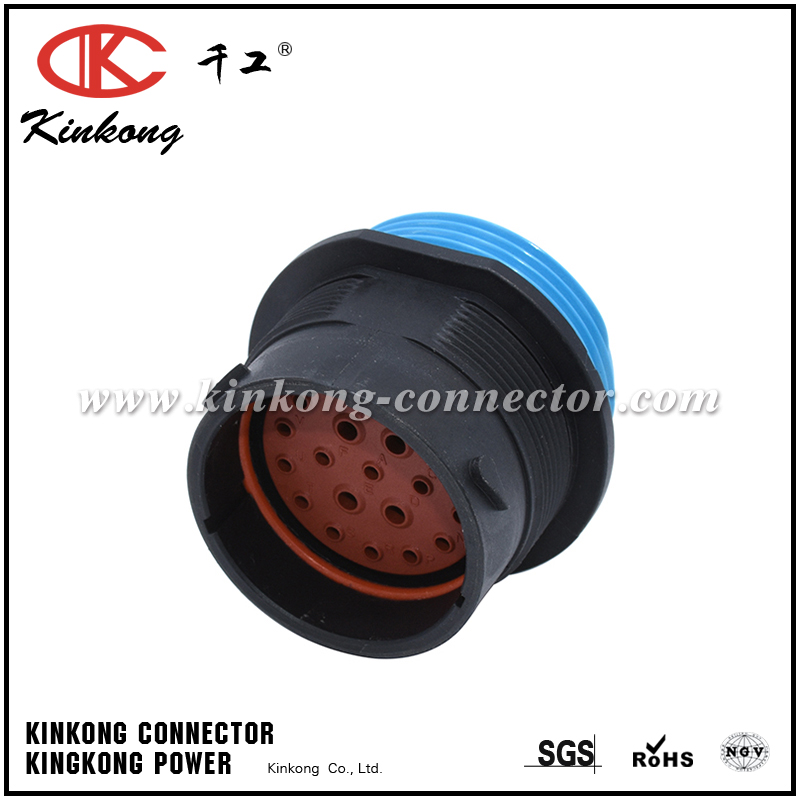

AHDP04-24-21PR-WTA SIZE 24 RECEPTACLE WITH 21 POSITIONS, PIN, STANDARD ARRANGEMENT, REDUCED SEAL, WIDE THREAD ADAPTER

Products Details

Product name:

AHDP04-24-21PR-WTA SIZE 24 RECEPTACLE WITH 21 POSITIONS, PIN, STANDARD ARRANGEMENT, REDUCED SEAL, WIDE THREAD ADAPTER

Product Catalog:

DuraMate Series

OnLine Service:

【Prev Products】

【Next Products】

Product Details	Product Inquiry

SPECIFICATIONS:

No. of positions:21

Contact type (Pin/Socket):Pin
Contact Size:12,16
AMP:25,13
AWG:10-14, 14-20
Gender:Standard
Housing Material:Thermoplastic
IP Rating:IP69K
Mating Cycle Durability:>100
Operating Temperature:-55°C to + 125°
Rear Seal Type:REDUCED SEAL
Color:Black
Dielectric Value:Dielectric withstanding voltage less than 2 milliamps current leakage @ 5000 volts AC
Insulation Resistance:1000 Megaohm min @ 25°C
Seal Material:Silicone Rubber
Seal Color:Blue
Mating Parts:AHDP06-24-21SN-WTA, AHDP06-24-21SR-WTA
Cross Reference:HDP24-24-21PE
