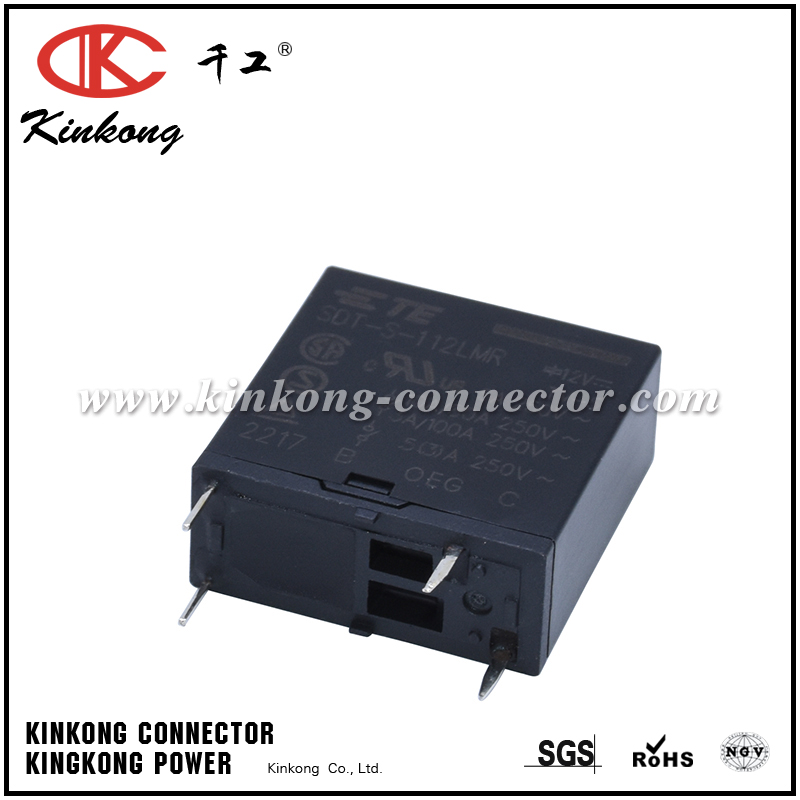

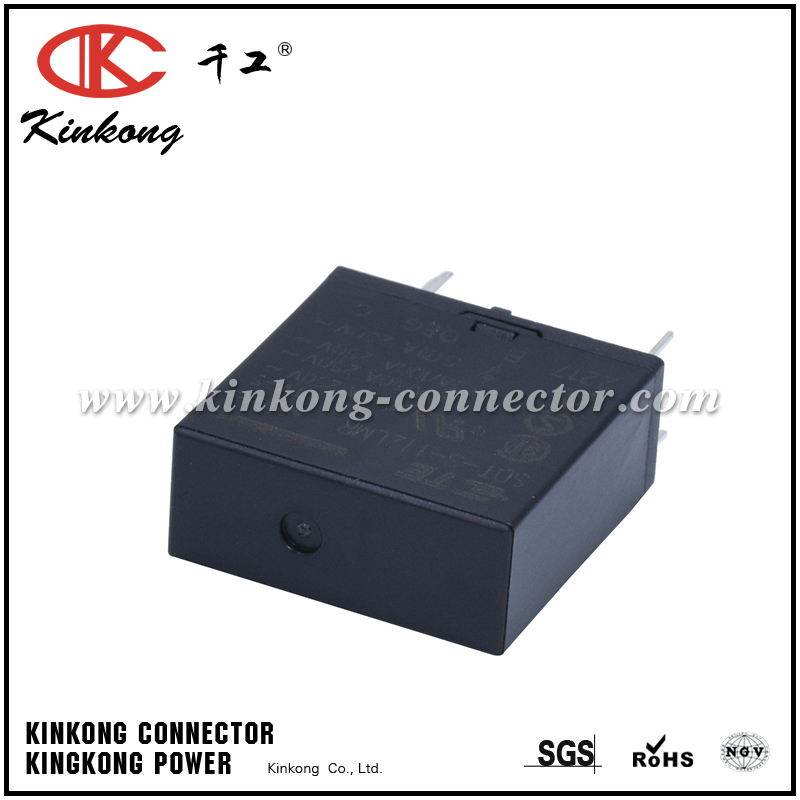

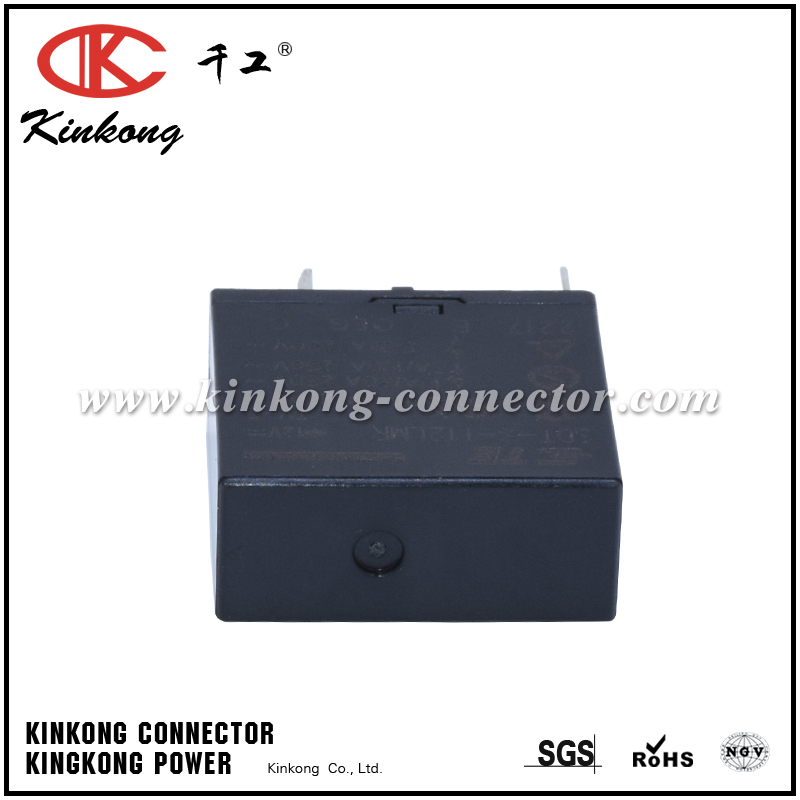

STD OEG PCB PCFN Solar Power Relays 9-1419125-9

9990000301 9-1419125-9-Original STD OEG PCB PCFN Solar Power Relays

Products Details

Product name:

9990000301 9-1419125-9-Original STD OEG PCB PCFN Solar Power Relays

Product Catalog:

Relay series

OnLine Service:

【Prev Products】

【Next Products】

Product Details	Product Inquiry

Product Type Features

Power Relay Type : Standard

Electrical Characteristics

Contact Limiting Breaking Current (A): 10
Coil Magnetic System : Monostable, DC
Coil Power Rating DC (mW): 250
Coil Resistance (Ω): 576
Coil Special Features : Sensitive Version, UL Coil Insulation Class E
Coil Voltage Rating (VDC): 12
Contact Switching Load (Min) : 100mA @ 5V
Contact Switching Voltage (Max) (VAC): 250
Contact Switching Voltage (Max) (VDC): 30
Contact Voltage Rating (VAC): 250
Contact Voltage Rating (VDC): 30
Insulation Creepage Between Contact & Coil : 3.2 mm [ .126 in ]
Insulation Initial Dielectric Between Contacts & Coil (Vrms): 4000
Coil Power Rating Class (mW): 200 – 300
Insulation Creepage Class (mm): 3 – 5.5
Contact Limiting Continuous Current (A): 10
Contact Limiting Short-Time Current (A): 10
Contact Limiting Making Current (A): 10
Insulation Initial Dielectric Between Open Contacts (Vrms): 1000
Insulation Initial Dielectric Between Coil & Contact Class (V): 3500 – 4000

Body Features

Product Weight : 11 g [ .388 oz ]

Contact Features

Contact Arrangement : 1 Form A (NO)
Contact Current Class (A): 5 – 10, 16
Contact Current Rating (Max) (A): 10
Contact Material : AgSnO2
Contact Number of Poles : 1
Relay Terminal Type : PCB-THT

Mechanical Attachment

Relay Mounting Type : Printed Circuit Board

Dimensions

Product Height : 25 mm [ .984 in ]
Product Length : 24 mm [ .945 in ]
Product Width : 10 mm [ .394 in ]
Width Class (Mechanical) (mm): 8 – 10
Insulation Clearance Between Contact & Coil : 1.6 mm [ .093 in ]
Height Class (Mechanical) (mm): 20 – 25
Insulation Clearance Class (mm): 0 – 2.5
Length Class (Mechanical) (mm): 20 – 25

Usage Conditions

Environmental Ambient Temperature (Max) : 70 °C [ 158 °F ]
Environmental Ambient Temperature Class (°C): 50 – 70
