Product name

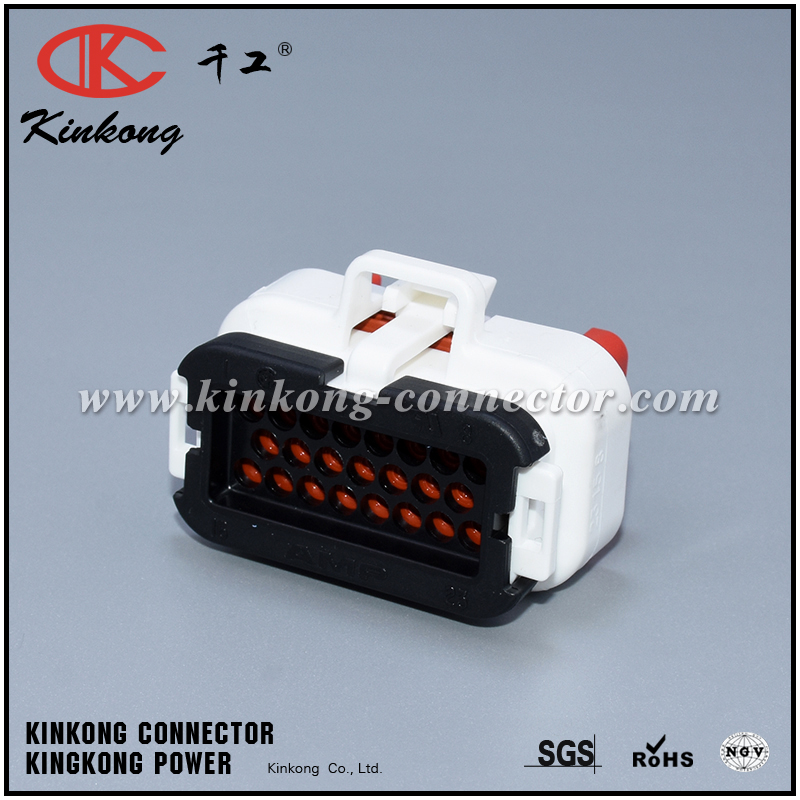

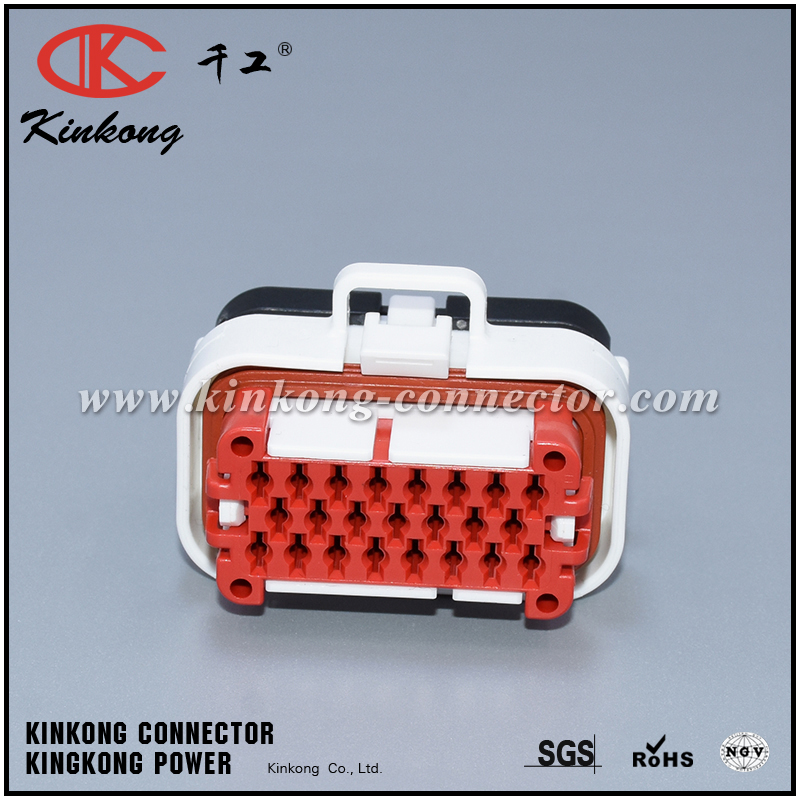

ECU Connector

Specification

CKK7233W-1.5-21

Original number

770680-2

Material

Housing:PBT+G,PA66+GF;Terminal:Copper Alloy,Brass,Phosphor Bronze.

Male or Female

Female

Number of Positions

23 Pin

Sealed or Unsealed

Sealed

Color

White

Operating Temperature range

-40℃~120℃

Function

Control board

Certification

TUV,TS16949,ISO14001 system and RoHS.

MOQ

Small order can be accepted.

Payment term

30% deposit in advance,70% before shipment,100% TT in advance

Delivery Time

Enough stock and strong production capacity ensure timely delivery.

Packaging

100,200,300,500,1000PCS per bag with label,export standard carton.

Design ability

We can supply sample, OEM&ODM is welcome. Customized drawing with Decal, Frosted, Print are available as request
