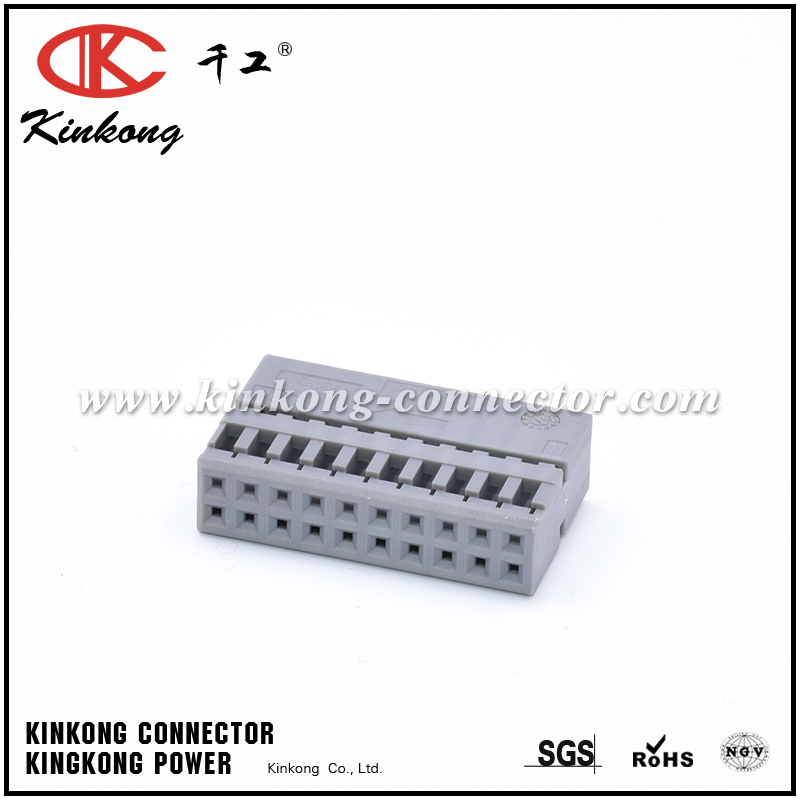

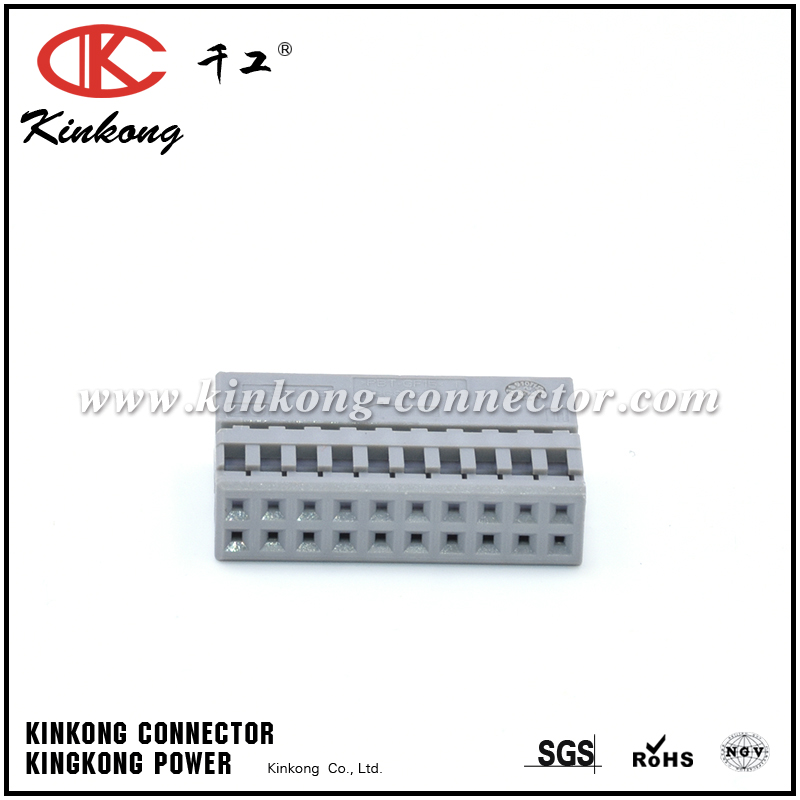

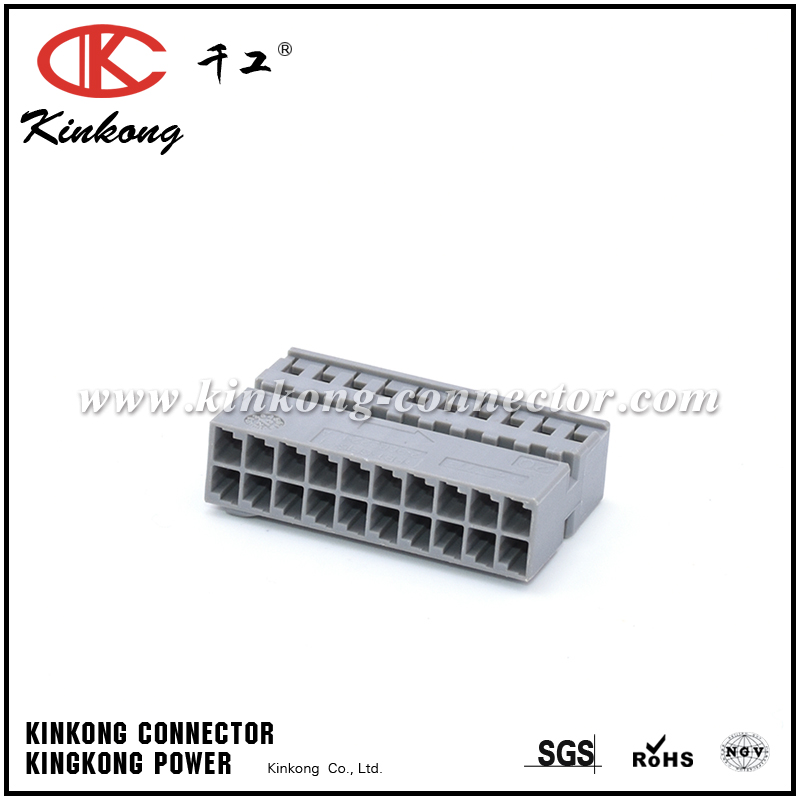

Product Type Features

Connector Shape : Rectangular
Mixed & Hybrid Connector : No
Connector & Housing Type : Housing for Female Terminals
Connector System : Wire-to-Board, Wire-to-Wire
Sealable : No
Primary Locking Feature : On the Terminal
Connector & Contact Terminates To : Wire & Cable
Contact Features

Contact Type : Receptacle
Contact Size : .63mm
Mating Tab Width : .63 mm [ .025 in ]
Contact Current Rating (Max) (A): 7.5
Housing Features

Housing Material : PBT GF
Centerline (Pitch) : 2.54 mm [ .1 in ]
Body Features

Cable Exit Angle : 180°
Primary Product Color : Gray
Connector & Keying Code : B
Other

Serviceable : No
Connector Position Assurance Capable : No
EU RoHS Compliance : Compliant
EU ELV Compliance : Compliant
Mechanical Attachment

Mating Alignment : With
Mating Alignment Type : Keyed
Terminal Position Assurance : Yes
Strain Relief : Without
Connector Mounting Type : Cable Mount (Free-Hanging)

Connector Height : 7.9 mm [ .311 in ]
Product Length : 26.1 mm [ 1.028 in ]
Product Width : 16 mm [ .63 in ]
Row-to-Row Spacing : 2.54 mm [ .1 in ]
Configuration Features

Number of Positions : 20
Number of Rows : 2
Electrical Characteristics

Nominal Voltage Architecture (V): 50
Usage Conditions

Operating Temperature (Max) (°C): 80, 105, 90, 100, 85, 75, 70, 110, 120
Operating Temperature (Max) (°F): 248, 221, 167, 158, 230, 176, 194, 185, 212
Operating Temperature Range : -40 – 120 °C [ -40 – 248 °F ]
Operation/Application

Circuit Application : Signal
