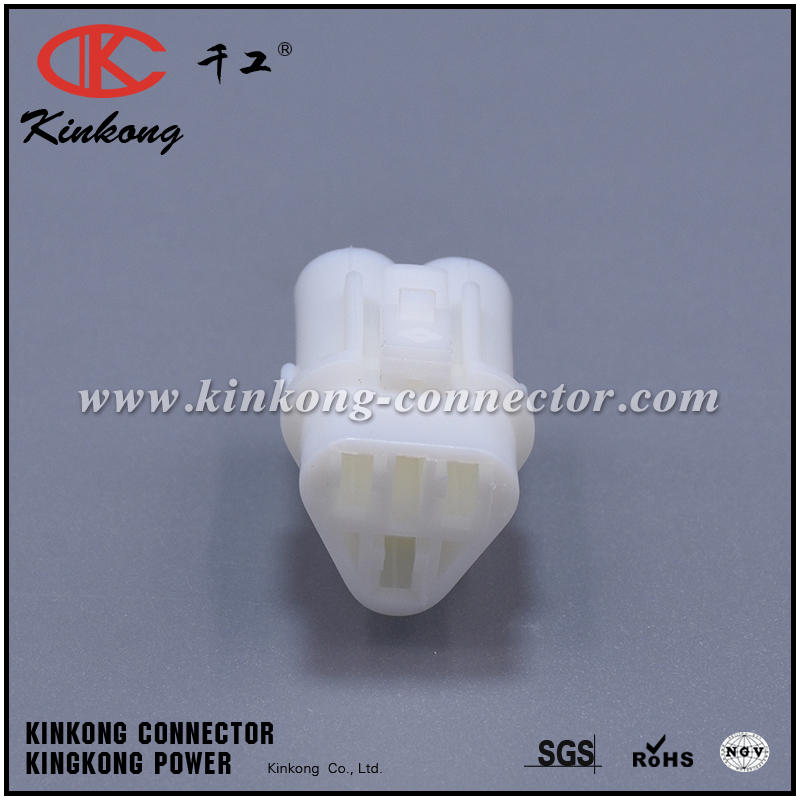

6180-3241 3 way female crimp connectors CKK7031B-2.0-21


Product name

Auto Connector

Specification

CKK7031B-2.0-21

Original number

6180-3241

Cross reference list

KTM 000700000AM

Suzuki 09900-28710-005 (White)

Material

Housing:PBT+G,PA66+GF;Terminal:Copper Alloy, Brass, Phosphor Bronze.

Male or Female

Female

Number of Positions

3 Pin

Sealed or Unsealed

Sealed

Color

White

Operating Temperature range

-40℃~120℃

Typical Application

1.Ducati side stand switch on 899, 1199 (sensor side)

2.TRE connector on Kawasaki motorcycles

3.TRE connector on Suzuki GSXR's & TL's. For SV's see HM-4P

4.GSXR gear position, neutral sensor (harness side)

5.GSXR camshaft sensor on 06'> (sensor side, black)

6.GSXR 1000 2nd throttle position sensor on 06'> (sensor side)

7.YZF-R6 TPS 99-02' (sensor side, white)

8.YZF-R6 crank sensor 06-09', neutral sensor

Function

Automotive Electrical Wiring Harness

Certification

TUV,T S16949,ISO14001 system and RoHS.

MOQ

Small order can be accepted.

Payment term

30% deposit in advance,70% before shipment,100% TT in advance

Delivery Time

Enough stock and strong production capacity ensure timely delivery.

Packaging

100,200,300,500,1000PCS per bag with label,export standard carton.

Design ability

We can supply sample, OEM&ODM is welcome. Customized drawing with Decal, Frosted, Print are available as request
